Engine
SPARK PLUGS
Refer to Maintenance Precautions on page 69. Recommended plugs:
- Standard: CR8EH-9 (NGK), U24FER-9 (NIPPONDENSO)
- For extended high speed riding: CR9EH-9 (NGK), U27FER-9 (NIPPONDENSO)
- Remove the air duct/maintenance cover (page 71). (Right side shown; left side similar).
- Disconnect the spark plug caps.
- Clean any dirt from around the spark plug bases.
- Remove the spark plugs.
- Visually inspect the spark plug electrodes for wear. The center electrode should have square edges and the side electrode should not be eroded.
- Discard the spark plug if there is apparent wear or if the insulator is cracked or chipped.
- Make sure the spark plug gap is 0.8-0.9 mm (0.031-0.035 in) using a wire-type feeler gauge. If adjustment is necessary, bend the side electrode carefully.
- With the plug washers attached, thread the spark plugs in by hand to prevent cross-threading.
- Tighten the spark plugs 1/2 turn with a spark plug wrench to compress the washers. If you are reusing a plug, it should only take 1/8-1/4 turn after the plug seats.
- Reinstall the spark plug caps.
- Reinstall the air duct/maintenance cover.
CAUTION:
- The spark plugs must be securely tightened. An improperly tightened plug can become very hot and possibly damage the engine.
- Never use a spark plug with an improper heat range. Severe engine damage could result.
- When installing body parts, do not pinch any cables or wires.
IDLE SPEED
Refer to Maintenance Precautions on page 69. The engine must be at normal operating temperature for accurate idle speed adjustment. Ten minutes of stop-and-go riding is sufficient.
NOTE:
- Do not attempt to compensate for faults in other systems by adjusting idle speed. See your authorized Honda dealer for regularly scheduled carburetor adjustments.
- Warm up the engine, shift to neutral and place the motorcycle on its center stand.

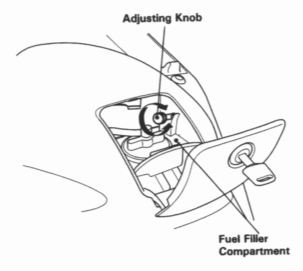

- Open the fuel filler compartment.
- Adjust idle speed with the adjusting knob.
Idle Speed: 1,000 ± 100 min-1 (rpm) (Except SW type) 1,200 ± 50 min-1 (rpm) (SW type) (In neutral)
