Essential Individual Components

IGNITION SWITCH

The ignition switch is on the handlebar cover.

Key Position Function Key Key Removal
ON All electrical circuits are on. Engine and lights can be operated. Key cannot be removed.
OFF All electrical circuits are off. (Except for Digital clock) Engine cannot be started. Key can be removed.
LOCK (steering lock) Steering is locked. Engine and lights cannot be operated. Key can be removed.

diagram

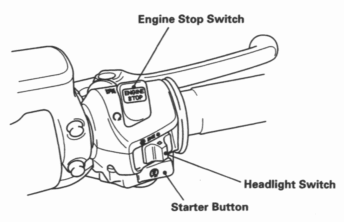

RIGHT HANDLEBAR CONTROLS

Engine Stop Switch

The two position engine stop switch is next to the throttle grip. When the switch is in the Run (RUN) position, the engine will operate. When the switch is in the OFF (OFF) position, the engine will not operate. This switch is intended primarily as a safety or emergency switch and should normally remain in the Run (RUN) position.

NOTE:

If your motorcycle is stopped with the ignition switch ON and the engine stop switch OFF, the headlight and taillight will still be on, resulting in battery discharge.

Starter Button

The starter button is below the engine stop switch. When the starter button is pressed, the starter motor will crank the engine. If the engine stop switch is in the OFF (OFF) position, the starter motor will not operate. See pages 49 - 50 for "Starting Procedure."

Headlight Switch (Except U type)

The headlight switch has three positions, , Position light and "OFF" marked by dot.

diagram

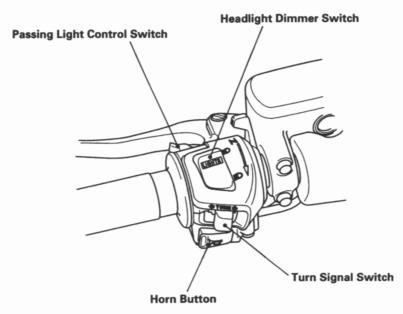

LEFT HANDLEBAR CONTROLS

The controls next to the left handlebar grip are:

Headlight Dimmer Switch

Select HI (HI) for high beam, LO (LO) for low beam.

Horn Button

Press the button to sound the horn.

Turn Signal Switch

Move the switch to L (L) to signal a left turn, to R (R) to signal a right turn; the appropriate turn signal and indicator will blink. Push to turn signal off.

Passing Light Control Switch

When this switch is pressed, the headlight flashes on to signal approaching cars or when passing.
